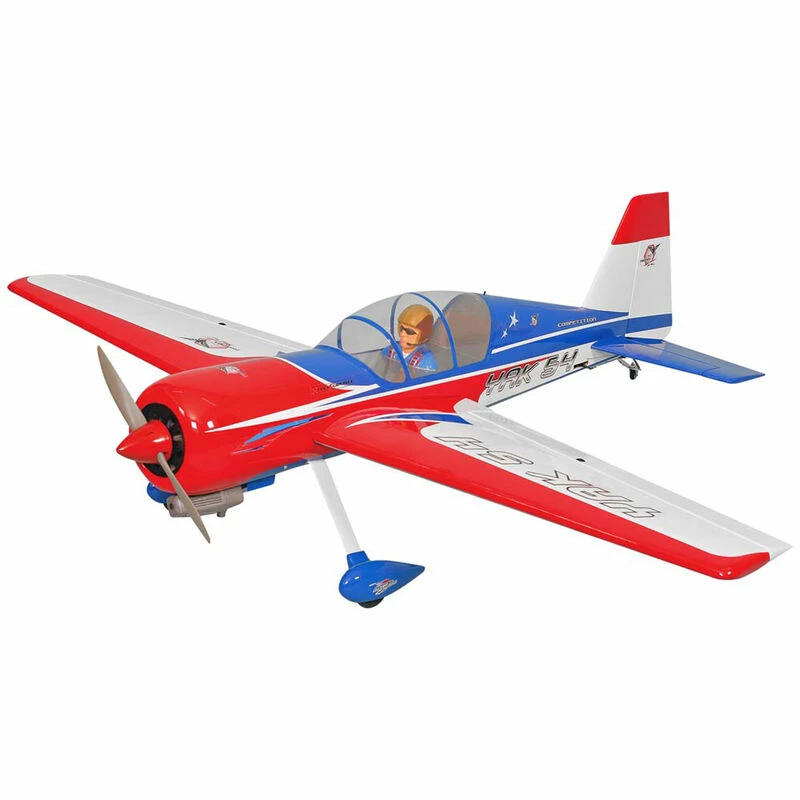

Phoenix Model Yak 54 Mk2 GP EP Gas ARF 66.3″ for Almost Ready-To-Fly

Key Features

• Construction: Laser cut balsa and light plywood
• Wing: 2 piece w/all wood construction, ailerons pre-installed, aluminum wing joiner
• Aileron Control: Dual servo
• Covering: Hangar 9 UltraCote
• Radio Compartment: Plywood reinforced
• Cowling: Pre-painted Fiberglass
• Canopy: Clear with painted pilot figure and dashboard detail
• Landing Gear: Prebent aluminum, prebent tailwheel wire
• Wheels: Two 4.25″ (108mm) rubber main, one 1″ (25mm) tail wheel
• Fuel Tank w/pre-assembled stopper, approximately 24oz (720cc)
• Spinner: Plastic construction red in color, 2.7″ (70mm) diameter
• Engine Mount: Two-piece composite plastic
• Motor Mount: Plywood with aluminum standoffs
• Wingspan: 66.3″ (1684mm)
• Weight: 10.3 – 11.4lb (4700 – 5200g)
• Length: 63.1″ (1605mm)
• Wing Area: 848 sq in (54.7 sq dm)
• Wing Loading: 28.50 oz sq/in (87 g sq/dm)
• Wing Type: NACA Airfoil
• Servo Mount: 0.83 x 1.6″ (21 x 42mm)
• Center of Gravity: Per updated information from the factory, the CG range is 5.5 – 5.9″ (140 -150mm) back from the wing’s leading edge measured at the fuselage
